EC-B3 09-10W10E66 IC900

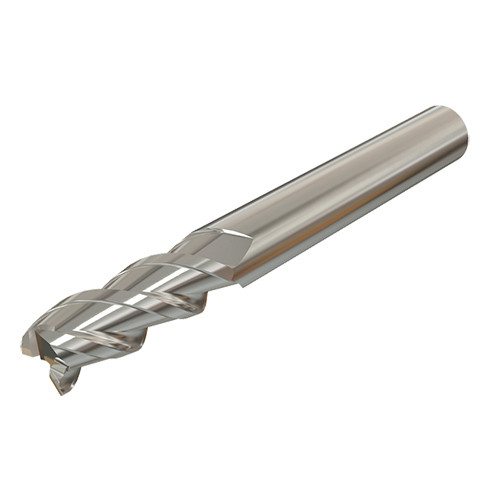

SQ End Mill; 9 mm Dia. × 10 mm LOC × 10 mm Shank Dia. × 66 mm OAL ; 3 FL ; 11 mm LBS ; Carbide ; AlTiN

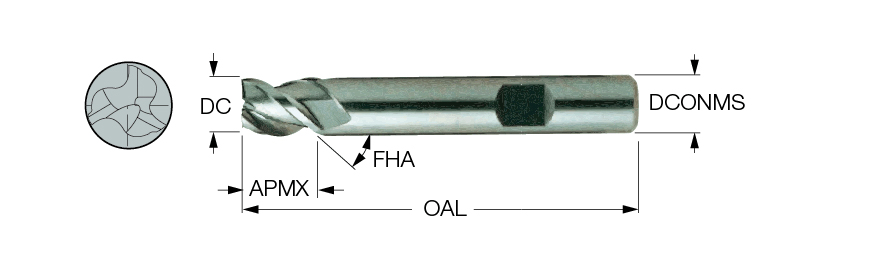

| Cutting Diameter (DC) | 9 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 10 mm | Neck Diameter (DN) | 9.03 mm |
| Overall Length (OAL) | 66 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Square | Measurement Type | Metric |
| Usable Length (LU) | 11 mm | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | h10 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Economical type 3 flute, 45° helix, center cutting, short and medium length solid carbide endmills | Country of Origin | China |
Shipping Info
Package Weight
0.149
