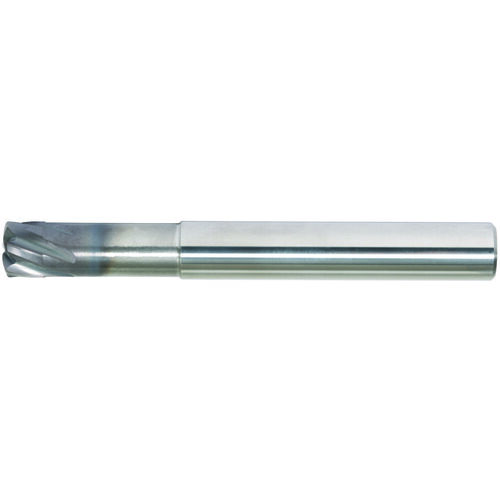

CARBIDE END MILL 6FL 12X12X9-18X83
Corner Radius End Mill; 12 mm Dia. × 0.63 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 6 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 12 mm | Flute Helix Angle (FHA) | CW|20 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 0.63 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 83 mm | Usable Length (LU) | 9.5 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.75 mm |
| Coating | AlTiN | Grade | ALTIN-MT |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.4724″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.0494
