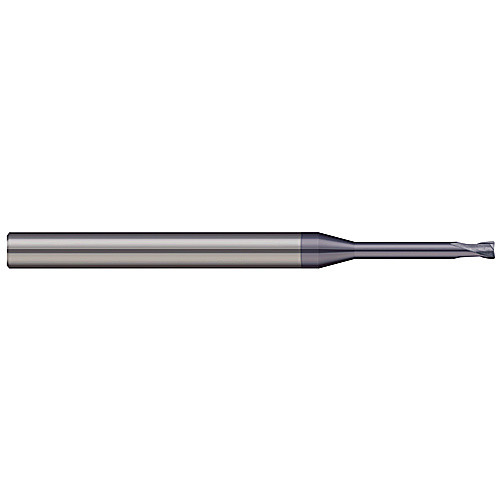

MMRM-015-25X 1.5mm × 72mm OAL 2 Flute Center Cutting 30° Helix Reduced Neck Corner Radius Mold Making End Mill - AlTiN
| Cutting Diameter (DC) | 1.5 mm | Usable Length (LU) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Neck Diameter (DN) | 1.45 mm |
| Depth of Cut Maximum (APMX) | 1.5 mm | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 72 mm | Length Group | 1D |
| Cutting Edge Material | Carbide | Flute Type | Helical |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.15 mm |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Corner Radius |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.04
