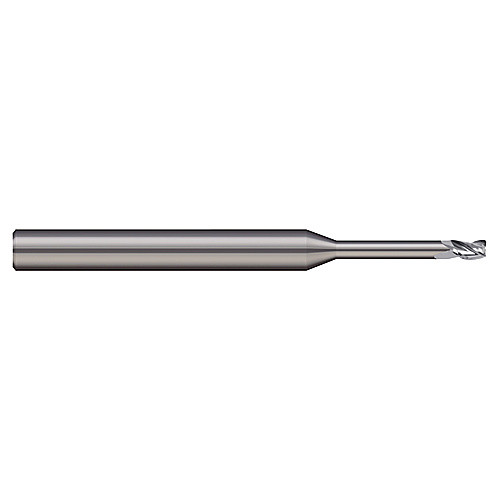

MEFM-050-3000-100 5mm × 57mm OAL 2 Flute Extra Fine Carbide Hard Milling Miniature End Mill - Uncoated
| Cutting Diameter (DC) | 5 mm | Applicable Material | Hard Materials |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 1 mm |
| Depth of Cut Maximum (APMX) | 6 mm | Neck Diameter (DN) | 4.9 mm |
| Overall Length (OAL) | 57 mm | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Length Group | 1.2D |
| Coating | Uncoated | Flute Type | Helical |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 20 Degrees | Measurement Type | Metric |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 1 mm |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 30 mm |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.06
