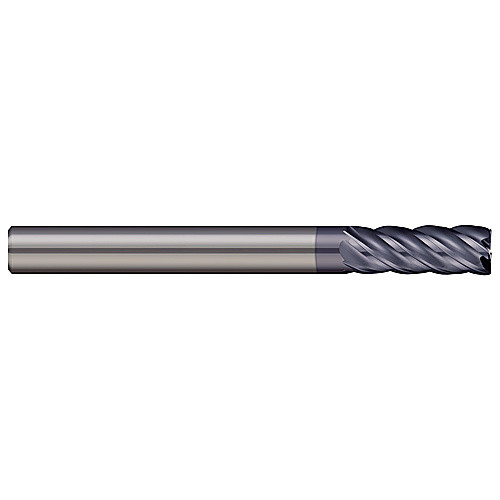

VHS-375-5-020K 3/8 Dia. × 2-1/2 OAL 5 Flute V-Hemoth Variable Helix End Mill - nACRo
| Cutting Diameter (DC) | 3/8″ | Application | HEM |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/2″ | Length Group | 1.7D |
| Cutting Edge Material | Carbide | Flute Type | Helical |
| Coating | NACRO | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 5/8″ |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.13
