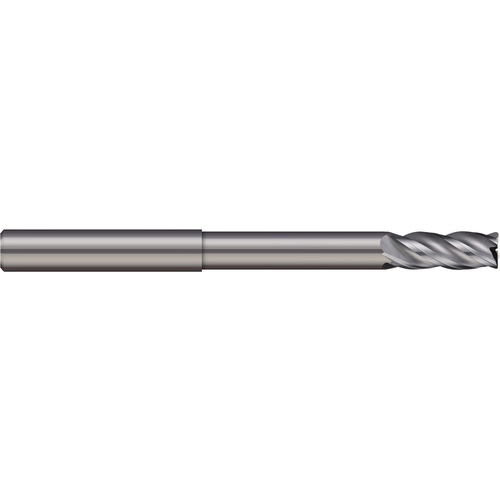

VLR-750-4 3/4 Dia. × 6 OAL 4 Flute V-Hemoth Variable Helix End Mill - Uncoated
SQ End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/4″ | Application | HEM |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Neck Diameter (DN) | 0.73″ |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Length Group | 2D |
| Coating | Uncoated | Flute Type | Helical |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.75″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Usable Length (LU) | 4-1/2″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.264
