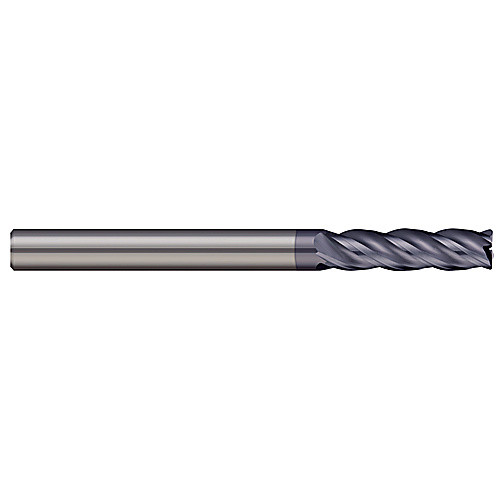

VLM-500-5-090K 1/2 Dia. × 4-1/2 OAL 5 Flute V-Hemoth Variable Helix End Mill - nACRo
| Cutting Diameter (DC) | 1/2″ | Application | HEM |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.09″ |
| Depth of Cut Maximum (APMX) | 1-3/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4-1/2″ | Length Group | 3.5D |
| Cutting Edge Material | Carbide | Flute Type | Helical |
| Coating | NACRO | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.09″ |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 1-3/4″ |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.38
