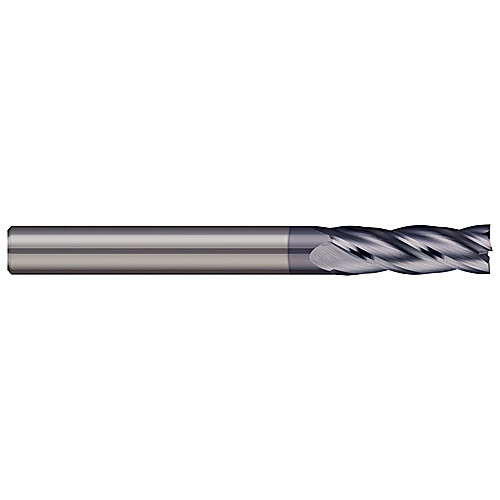

SEM-062-04X .0620 × 1-1/2 OAL 4 Flute Stub End Mill - AlTiN
SQ End Mill; 1/16″ Dia. × 1/8″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; 1/8″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1/8″ |
| Depth of Cut Maximum (APMX) | 1/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 1-1/2″ | Length Group | 2D |
| Cutting Edge Material | Carbide | Flute Type | Helical |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.0625″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.01
