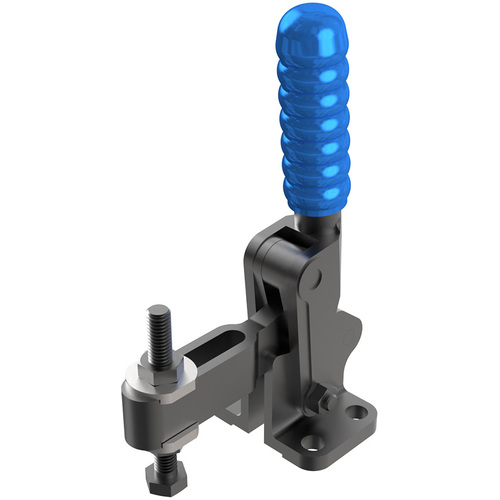

72104 ADJ U-BAR FLNGD/BS
| Style | Heavy Duty Vertical | Bar Style | Adjustable U-Bar |
| Type | Heavy Duty Toggle Clamp | Mounting Diameter | 0.26″ |
| Arm | 1.77″ | Mounting Length | 0.75″ |
| Height Under Clamp Arm | 63/64″ | Mounting Width | 1.26″ |
| Holding Capacity | 660 lbs | Overall Width | 1.65625″ |
| Overall Height | 3.03125″ | Spindle Size | M6 × 50 |
| Overall Length | 3.3125″ | Base Length | 1.21875″ |
| Thread Size | M6 | Series | HDV Heavy Duty Vertical |
| Includes | Set screw and nutes, Flanged washer | Clamp Arm Length | 1.77″ |
Product Features
| Remarks | •Arm: The spindle is adjustable along the arm. •Base: Flanged. •Nominal Holding Force: 660 lbs. •Weight: 9 oz. •Supplied complete with:?Set screw & nuts, Flanged washer. | Country of Origin | United Kingdom |
Shipping Info
Package Weight
0.67
