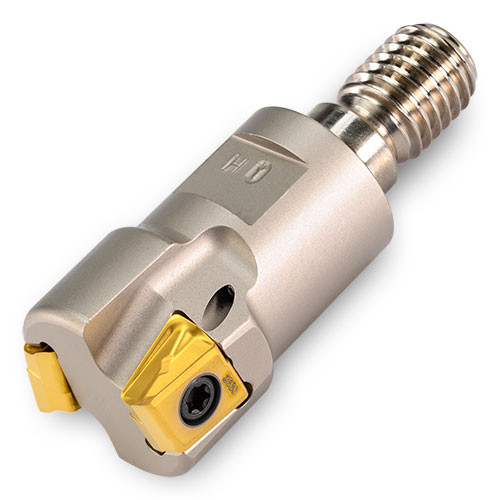

1EJ5C-12017X8R01
Indexable End Mill; 1-1/4″ Dia. × 0.385″ LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1-1/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.385″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1.41 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Hub Diameter (DHUB) | 1.135″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1-3/4″ |
Product Features
| Country of Origin | Usa |
