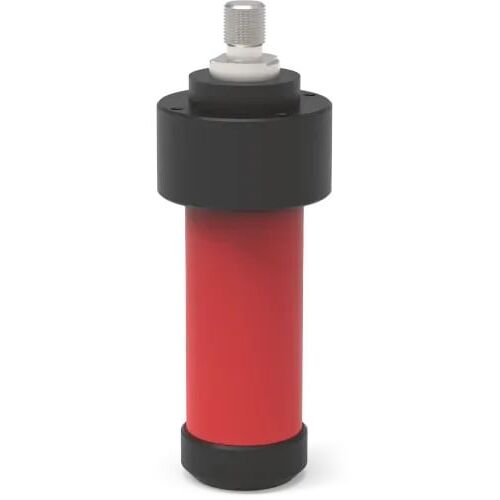

K600–30–6-A K–6KN–30MM STROKE
| Type | Pneumatic Power Cylinder | Model No | K600-30-6-A |
| Style | Power Cylinder with Male Piston Rod Thread | Arm Supplied | NA |
| Capacity | 1350 lbs | Spindle Supplied | NA |
| Clamping Force | 1350 lbs | Maximum Holding Force | NA |
| Thread Size | M16x1.5 | Maximum Holding Torque | NA |
| Clamping Arm Length | NA | Clamping Torque | NA |
| Maximum Opening | NA | Clamp Arm Width | NA |
| Base Width | 2.3 | Clamp Arm Height | NA |
| Length | 2.3 | Clamp Height | 8.5 |
| Height | 8.5 | Stroke | 1.18 |
| Width | 2.9 | Distance from Bottom to Extend Port Center | NA |
| Throat Depth | NA | Distance from Top to Clamp Port Center | 2 |
| Mount Diameter | 2.5 | Cylinder Rod Diameter | M16x1.5 |
| Mounting Length | NA | Cylinder Height | 8.5 |
| Mounting Width | NA | Distance from Base to Cylinder Rod Height | 8.5 |
| Overall Length | 2.3 | Distance from Base to Bevel Height | NA |
| Overall Height | 8.5 | Distance from Center to Cylinder Mount Center | NA |
| Overall Width | 2.9 | Distance from Edge to Center of Tapped Hole | NA |
| Bore Size | 1.97 | Distance from Top to Bevel Length | NA |
| Port Size | G1/8 | Cylinder Rod Recess | NA |
| Dowel Size | NA | Countersink for Mounting Screw | NA |
| Hole Size | M6, 10mm Deep | Arm Width | NA |
| Centerline Distance | NA | Operating Voltage | NA |
| Block Body Width | NA | Switching Power | NA |
| Travel During Rotation | NA | Voltage Drop | NA |
| Vertical Clamp Stroke | 0.24 | Indicator | NA |
| Distance Body Side to Piston Rod Centerline | 1.45 | Connection | NA |
| Distance Piston Rod to End Clamp Arm | NA | Temperature Range | 23°F-167°F |
| Distance Spindle Hole to End Clamp Arm | NA | Function | Two stage power cylinder |
| Maximum Arm Length | NA | Series | Type K |
| Mounting Hole to Piston Rod Centerline | 1.25 | For Use With | NA |
| Cylinder Width | 2.1 | Weight | 4.7 lbs |
Product Features
| Country of Origin | Germany |
