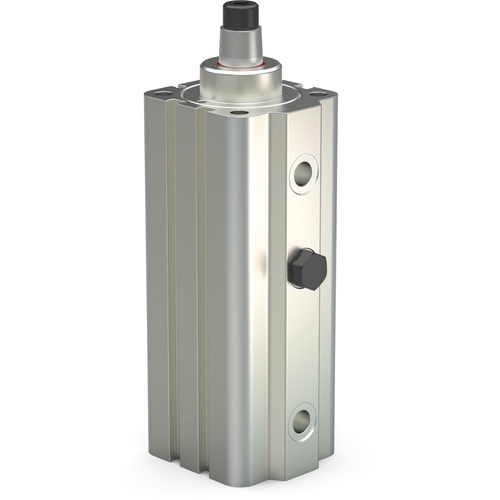

89R320102 PNEUMATIC SWING CYLINDER
Additional Canadian Tariff of 25 %
| Type | Pneumatic Swing Clamp | Vertical Clamp Stroke | 0.39 |
| Style | Adjustable Swing Direction | Distance Body Side to Piston Rod Centerline | 0.89 |
| Capacity | 55 lbs | Maximum Arm Length | 3.15 |
| Clamping Force | 55 lbs | Mounting Hole to Piston Rod Centerline | 0.71 |
| Maximum Opening | 90° | Cylinder Width | 1.77 |
| Base Width | 1.77 | Model No | 89R32-010-2 |
| Length | 1.77 | Maximum Holding Force | 55 lbs |
| Height | 5.85 | Clamp Height | 5.85 |
| Width | 1.77 | Stroke | 1.1 |
| Mount Diameter | M8 | Distance from Bottom to Extend Port Center | 0.69 |
| Mounting Length | 1.42 | Distance from Top to Clamp Port Center | 0.96 |
| Mounting Width | 1.26 | Cylinder Rod Diameter | 0.47 |
| Overall Length | 1.77 | Cylinder Height | 5.85 |
| Overall Height | 5.85 | Distance from Base to Cylinder Rod Height | 5.85 |
| Overall Width | 1.77 | Temperature Range | 140°F Max |
| Bore Size | 1.26 | Function | Swing 90° and clamp down |
| Port Size | G1/8 | Series | 89R |
| Hole Size | M8 | For Use With | 8JG and 8MA arms |
| Travel During Rotation | 0.61 | Weight | 1.32 lbs |
Product Features
| Country of Origin | USA |
