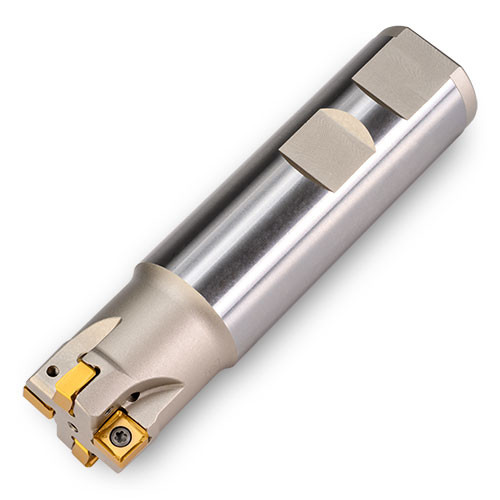

1DJ1E-0701084R01
Indexable End Mill; 3/4″ Dia. × 0.19″ LOC × 3/4″ Shank Dia. × 3″ OAL × 0.95″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3/4″ | Usable Length (LU) | 0.95″ |
| Cutting Diameter (DC) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.19″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3″ | Measurement Type | Inch |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Protruding Length (LPR) | 1″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Great Price-per-Edge economy! Insert corner: .031″ R | Country of Origin | USA |
