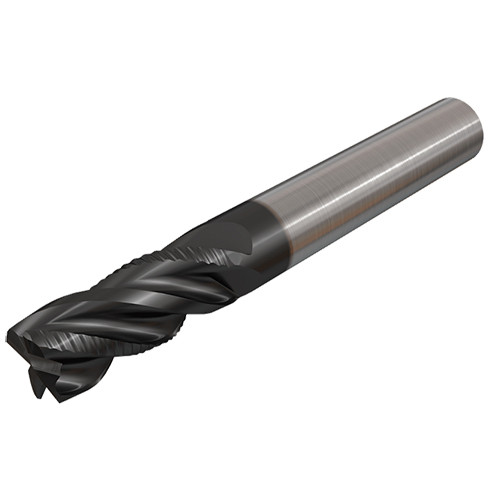

EFS-E44 14-30W14CF83 IC900
SQ End Mill; 14 mm Dia. × 30 mm LOC × 14 mm Shank Dia. × 83 mm OAL ; 4 FL ; 30 mm LBS ; Carbide ; AlTiN

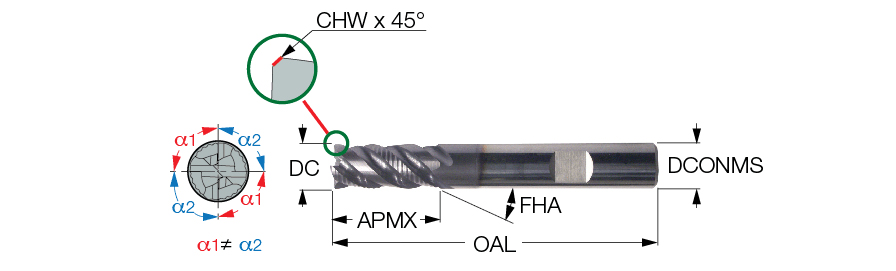

| Cutting Diameter (DC) | 14 mm | Corner Chamfer Width (CHW) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 30 mm | Grade | IC900 |
| Overall Length (OAL) | 83 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.11 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Chamfer | Measurement Type | Metric |
| Usable Length (LU) | 30 mm | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Combination of roughing and finishing solid carbide endmill in a single tool. 4 variable pitch flutes, 38° Helix, medium length. Provides finish surface at rough machining parameters. Reduces vibrations at high load applications. | Country of Origin | Israel |
| Remarks | Minimum width of cut for semi-finishing operation >= 0.05 x DC |
Shipping Info
Package Weight
0.357
