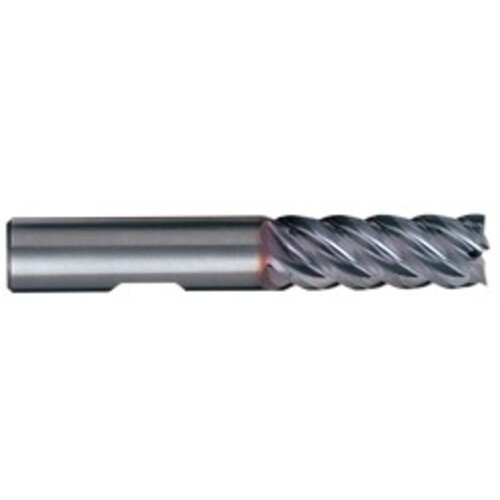

3/4″ × 3/4″ × 7/8″ × 3″ RHS / RHC Solid Carbide 5-Flute High-Performance End Mill for Steel - TiAlN
Square End Mill; 3/4″ Dia. × 7/8″ LOC × 3/4″ Shank Dia. × 3″ OAL ; 5 FL ; Carbide ; AlTiN ; Series HPEM-5-TA
| Cutting Diameter (DC) | 3/4″ | Applicable Material | | Stainless Steel | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 7/8″ | Length Group | Stub |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | HPEM-5-TA |
| Flute Helix Angle (FHA) | CW | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.355
