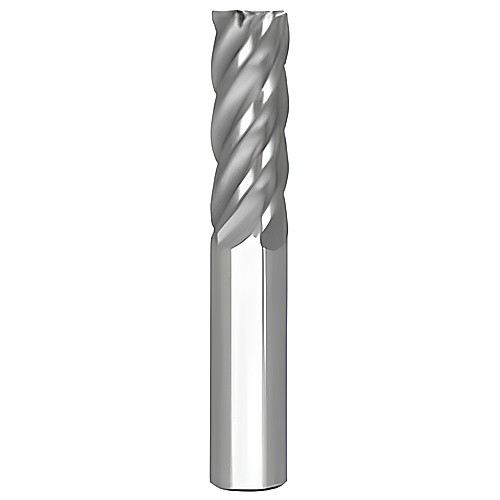

STR540-0.750-D2-R125.0-Z5
SQ End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 1/8″ RE ; 5 FL ; Carbide ; AlCrN
| Cutting Diameter (DC) | 3/4″ | Flute Helix Angle (FHA) | Variable |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 4″ | Corner Radius (RE) | 1/8″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlCrN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | 1/8″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.8
