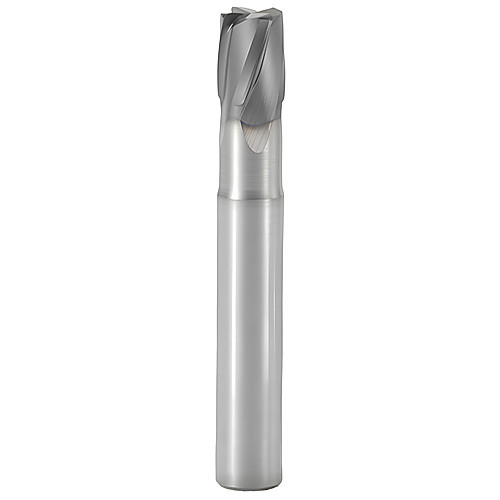

120120-MEGA-64 JABRO TORNADO
SQ End Mill; 12 mm Dia. × 15 mm LOC × 12 mm Shank Dia. × 80 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 30 mm |
| Depth of Cut Maximum (APMX) | 15 mm | Applicable Material | | Hard Materials | |
| Overall Length (OAL) | 80 mm | Corner Radius (RE) | 1.2 mm |
| Cutting Edge Material | Carbide | Tool Type | Corner Radius |
| Coating | MEGA-64 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.4724″ |
| Flute Helix Angle (FHA) | 20 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 1.2 mm |
| Shank Type | Round |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.276
