JHP951100E2R050.3Z4-SIRA JABRO HPM

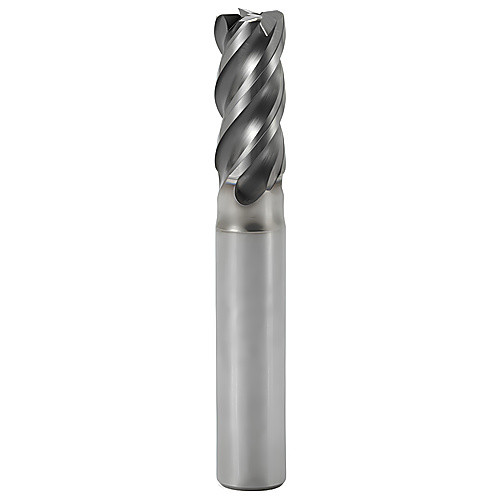

SQ End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 70 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 28 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Applicable Material | | Steel | Cast Iron | |
| Overall Length (OAL) | 70 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Tool Type | High Performance |
| Coating | SIRON-A | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.3937″ |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | JHP951 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.5 mm |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.165
