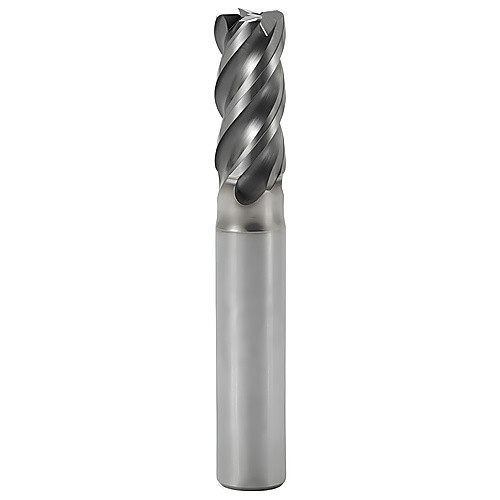

JHP951120E2R050.3Z4-SIRA JABRO HPM
SQ End Mill; 12 mm Dia. × 26 mm LOC × 12 mm Shank Dia. × 80 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 33 mm |
| Depth of Cut Maximum (APMX) | 26 mm | Applicable Material | | Steel | Cast Iron | |
| Overall Length (OAL) | 80 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Tool Type | High Performance |
| Coating | SIRON-A | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.4724″ |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | JHP951 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.5 mm |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.265
