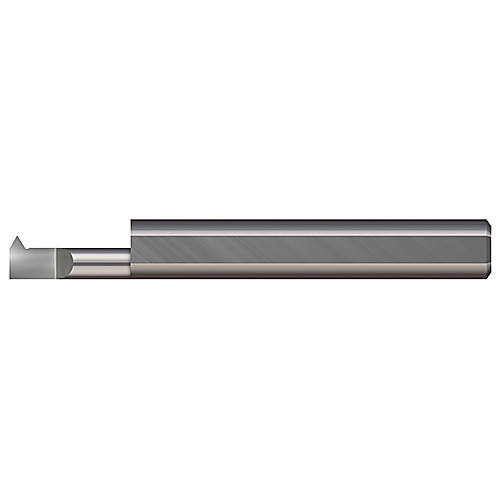

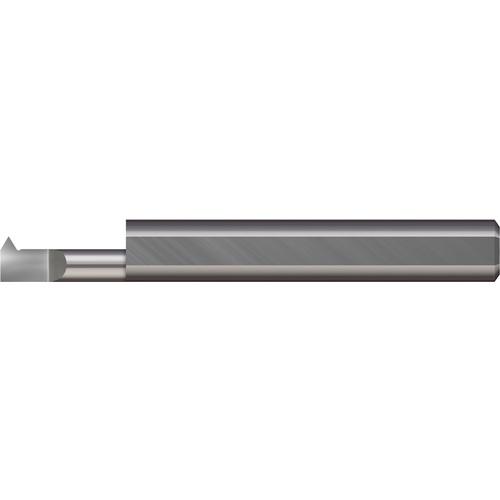

.0850 Projection-60° - LH - .360″ Min Thread - Internal Threading Tool
| Threads per Inch Minimum (TPIN) | 7 | Thread Angle | 60 Degrees |
| Thread Standard | | ANSI | UN | Metric | | Coating | Uncoated |
| Threads per Inch Maximum (TPIX) | 32 | Measurement Type | Inch |
| Maximum Thread Diameter | 1/2″ | Overall Length (OAL) | 2-1/2″ |
| Overhang Minimum (OHN) | 0.085″ | Minimum Bore Diameter (DMIN) | 0.382″ |
| Functional Width (WF) | 0.36″ | Tool Type | Internal Threading Tool |
| Minimum Thread Diameter | 0.36″ | Cutting Length | 1/2″ |
| Cutting Direction (HAND) | Left Hand | Internal/External | Internal |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
Product Features
| Remarks | •Solid Carbide 60° Internal Threading Tools •Left Hand | Country of Origin | USA |
Shipping Info
Package Weight
.013
