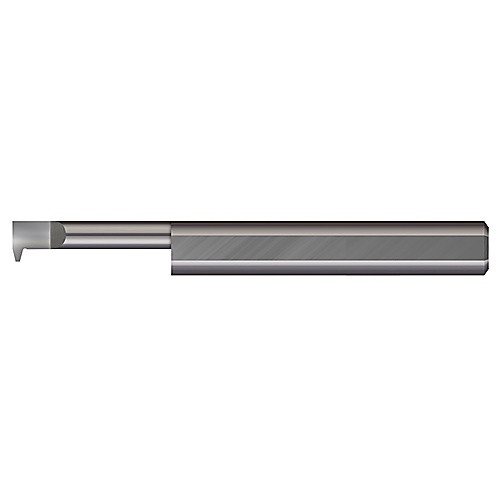

.1200 Projection-29° - RH - .490″ Min Thread - Internal Threading Tool
| Thread Standard | ACME | Measurement Type | Inch |
| Overhang Minimum (OHN) | 0.12″ | Overall Length (OAL) | 3″ |
| Functional Width (WF) | 0.49″ | Minimum Bore Diameter (DMIN) | 13 mm |
| Minimum Thread Diameter | 0.49″ | Tool Type | Internal Acme Threading Tool |
| Cutting Direction (HAND) | Right Hand | Threads per Inch (TPI) | 10 |
| Cutting Edge Material | Carbide | Cutting Length | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Internal/External | Internal/External |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Remarks | •Solid Carbide Internal Acme Threading Tools •29° Included Angle | Country of Origin | USA |
Shipping Info
Package Weight
0.232
