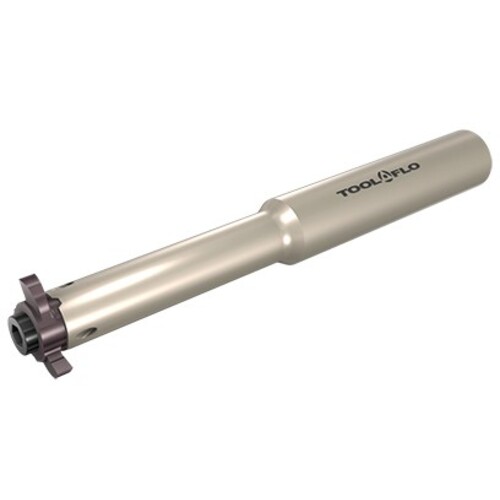

TFM-7-500-512C
Indexable End Mill; 40 mm Dia. × 13 mm LOC × 1/2″ Shank Dia. × 5.12″ OAL ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 40 mm | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 40 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 4 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 13 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 5.12″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Measurement Type | Inch |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Cutting Diameter Maximum (DCX) | 0.854″ |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Country of Origin | USA |
