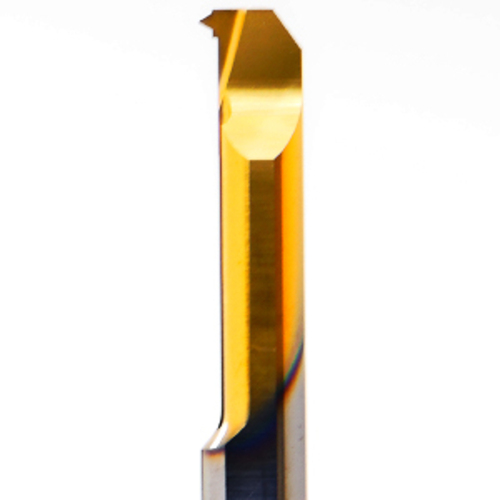

MIR 6 L22 1.25 ISO BXC
| Thread Pitch (TP) | 01.25mm | Overall Length (OAL) | 50.8 mm |
| Cutting Direction (HAND) | Right Hand | Minimum Bore Diameter (DMIN) | 6.1 mm |
| Cutting Edge Material | Carbide | Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 60 Degrees | Size | H6 |
| Applicable Material | | Stainless Steel | | Cutting Length | 22.1 mm |
| Coating | TiN | Thread Size | M7 × 1.25 |
| Measurement Type | Metric | Internal/External | Internal |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.038
