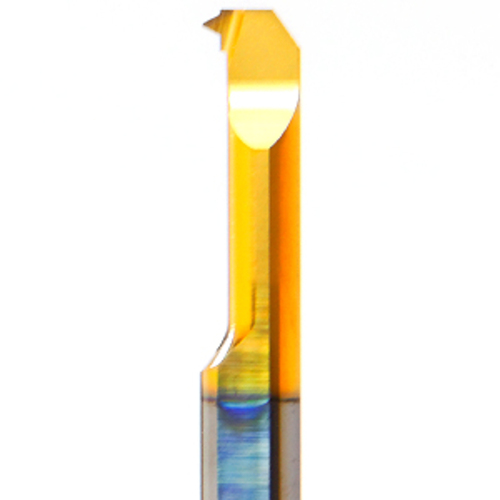

MIR 5 L15 A55 BXC
| Threads per Inch Minimum (TPIN) | 20 | Measurement Type | Metric |
| Threads per Inch Maximum (TPIX) | 48 | Overall Length (OAL) | 50.8 mm |
| Cutting Direction (HAND) | Right Hand | Minimum Bore Diameter (DMIN) | 5.08 mm |
| Cutting Edge Material | Carbide | Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 55 Degrees | Size | H5 |
| Applicable Material | | Stainless Steel | | Cutting Length | 14.99 mm |
| Coating | TiN | Internal/External | Internal |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
