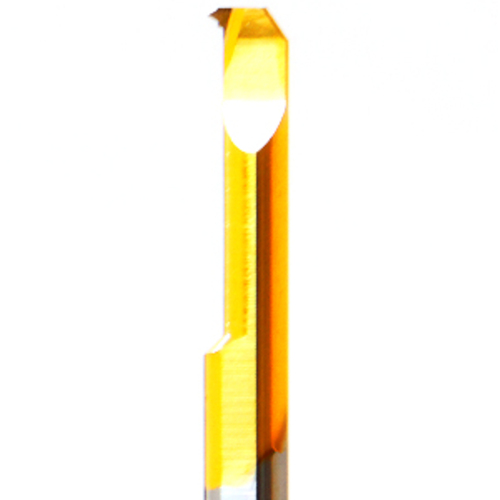

MIR 4 L15 0.75 ISO
| Thread Pitch (TP) | 00.75mm | Overall Length (OAL) | 50.8 mm |
| Cutting Direction (HAND) | Right Hand | Minimum Bore Diameter (DMIN) | 4.06 mm |
| Cutting Edge Material | Carbide | Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 60 Degrees | Size | H4 |
| Applicable Material | | Stainless Steel | | Cutting Length | 14.99 mm |
| Coating | TiN | Thread Size | M5 × 0.75 |
| Measurement Type | Metric | Internal/External | Internal |
Product Features
| Country of Origin | Israel |
