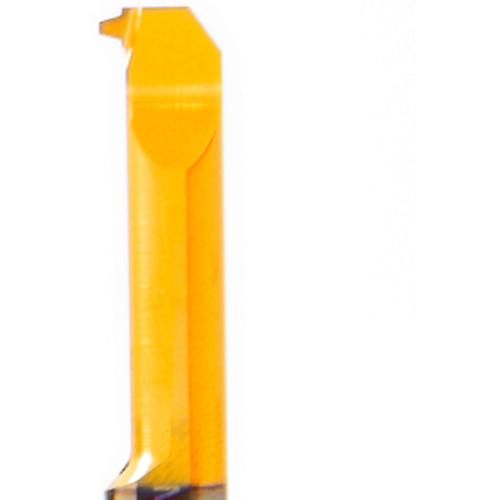

MIR 10 L35 3TR BXC
| Thread Pitch (TP) | 03.00mm | Overall Length (OAL) | 73.66 mm |
| Cutting Direction (HAND) | Right Hand | Minimum Bore Diameter (DMIN) | 10.41 mm |
| Cutting Edge Material | Carbide | Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 30 Degrees | Size | H10 |
| Applicable Material | | Stainless Steel | | Cutting Length | 35.05 mm |
| Coating | TiN | Thread Size | 14 × 3 | 22 × 3 | 24 × 3 | 26 × 3 | 28 × 3 |
| Measurement Type | Metric | Internal/External | Internal |
Product Features
| Country of Origin | Israel |
