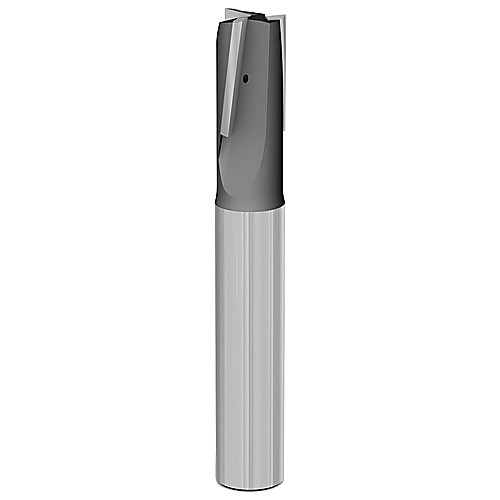

JPD880160E3C.0Z3A JABRO COMPOSITE ENDMILL
SQ End Mill; 16 mm Dia. × 20 mm LOC × 16 mm Shank Dia. × 90 mm OAL ; 3 FL ; PCD
| Cutting Diameter (DC) | 16 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Usable Length (LU) | 35 mm |
| Depth of Cut Maximum (APMX) | 20 mm | Corner Chamfer Width (CHW) | 0.1 mm |
| Overall Length (OAL) | 90 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | PCD | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.6299″ |
| Flute Count (NOF) | 3 | Series/List # | JPD880 |
| Shank Type | Round |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Weight
0.461
