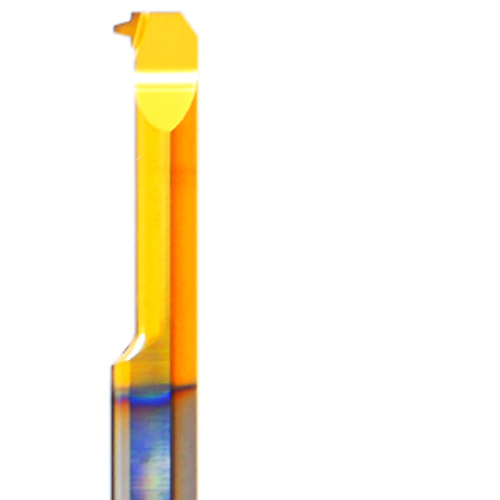

MIR 7 L25 2TR BXC
| Thread Pitch (TP) | 02.00mm | Overall Length (OAL) | 60.96 mm |
| Cutting Direction (HAND) | Right Hand | Minimum Bore Diameter (DMIN) | 6.86 mm |
| Cutting Edge Material | Carbide | Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 30 Degrees | Size | H7 |
| Applicable Material | | Stainless Steel | | Cutting Length | 24.89 mm |
| Coating | TiN | Thread Size | 10 × 2 | 11 × 2 | 12 × 2 | 9 × 2 |
| Measurement Type | Metric | Internal/External | Internal |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0
