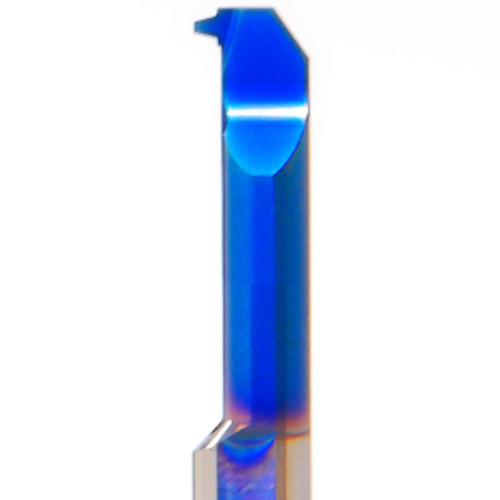

MIR 6 L20 14 ACME BMK
| Cutting Direction (HAND) | Right Hand | Grade | BMK |
| Cutting Edge Material | Carbide | Threads per Inch (TPI) | 14 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 29 Degrees | Size | H6 |
| Applicable Material | | General Purpose | | Cutting Length | 20.07 mm |
| Measurement Type | Metric | Thread Size | 5/16 × 14 |
| Overall Length (OAL) | 50.8 mm | Internal/External | Internal |
| Minimum Bore Diameter (DMIN) | 6.1 mm |
Product Features
| Country of Origin | Israel |
