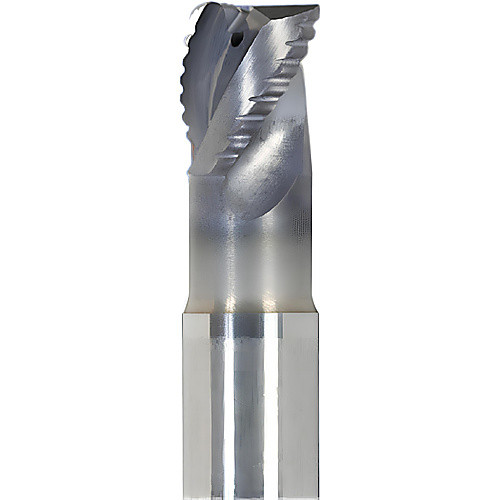

490V100R050Z2.9A-MEGA-T JABRO END MILL
SQ End Mill; 10 mm Dia. × 12 mm LOC × 10 mm Shank Dia. × 65 mm OAL ; 2 FL ; Carbide
| Cutting Diameter (DC) | 10 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 12 mm | Usable Length (LU) | 20 mm |
| Overall Length (OAL) | 65 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Tool Type | High Performance |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 37.5 Degrees | Decimal Equivalent | 0.3937″ |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.941
