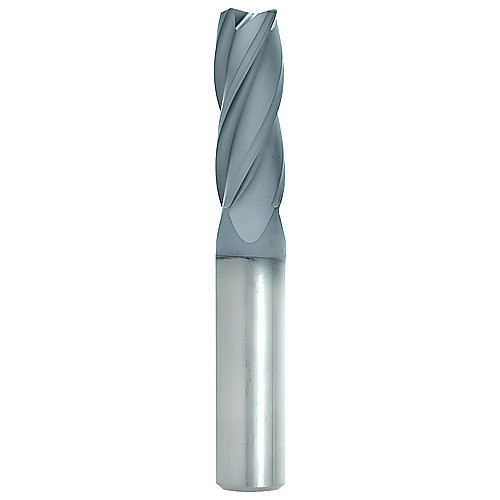

DIACR430-0.125-D4-R015.0-Z4 CVDDIA
SQ End Mill; 1/8″ Dia. × 1/2″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; CVDDIA
| Cutting Diameter (DC) | 1/8″ | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 1/2″ | Applicable Material | | Other Non-Metallic Materials | |
| Overall Length (OAL) | 1-1/2″ | Corner Radius (RE) | 0.015″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | CVDDIA | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
