22J3P025026W5R00

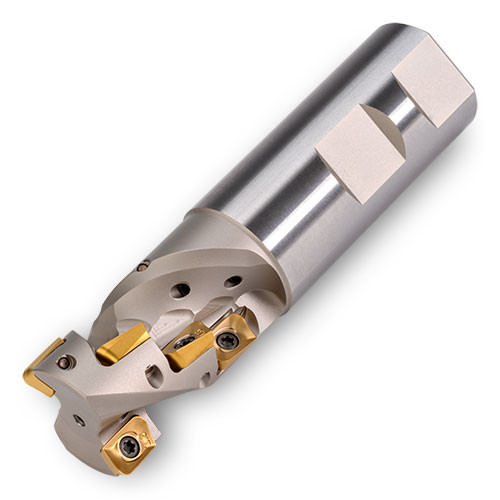

Indexable End Mill; 25 mm Dia. × 25 mm LOC × 25 mm Shank Dia. × 100 mm OAL × 40 mm LU ; 2 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 25 mm | Usable Length (LU) | 40 mm |
| Cutting Diameter (DC) | 25 mm | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 25 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 4.4 Degrees | Measurement Type | Metric |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Protruding Length (LPR) | 44 mm |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Insert corners: 0.4, 0.8, 1.6, 3.2 mm R | Country of Origin | Germany |
Shipping Info
Package Weight
0.624
