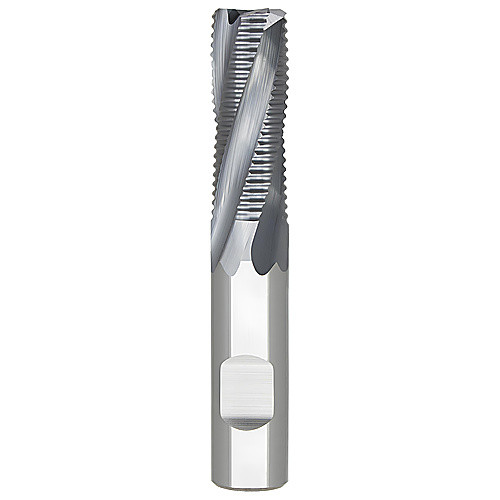

SR420-1.000-D1-C025.3-Z5 ALTIN
SQ End Mill; 1″ Dia. × 1-1/4″ LOC × 1″ Shank Dia. × 4″ OAL ; 5 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1″ | Flute Helix Angle (FHA) | 20 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 1-1/4″ | End Shape | Chamfer |
| Overall Length (OAL) | 4″ | Corner Chamfer Width (CHW) | 0.025″ |
| Cutting Edge Material | Carbide | Flute Type | Fine |
| Coating | AlTiN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | 0.025″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.1
