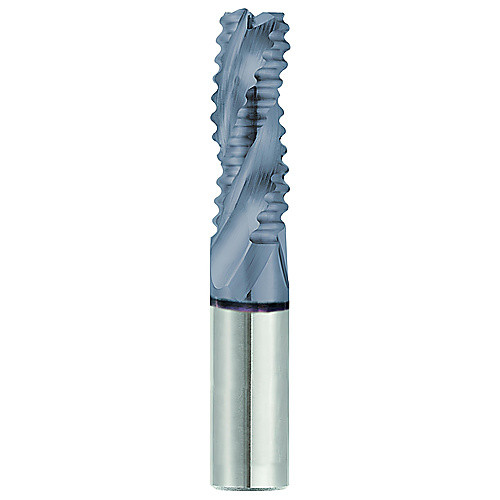

AR330-0.500-D3-C025.0-Z3 TICN
SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 1/2″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 3″ | Corner Chamfer Width (CHW) | 0.025″ |
| Cutting Edge Material | Carbide | Flute Type | Coarse |
| Coating | TiCN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | 0.025″ |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.24
