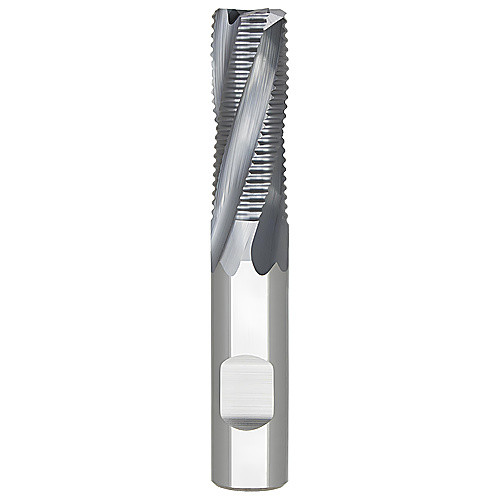

SR420-0.625-D1-C025.3-Z4 ALTIN
SQ End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/8″ | Flute Helix Angle (FHA) | 20 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 3/4″ | End Shape | Chamfer |
| Overall Length (OAL) | 3″ | Corner Chamfer Width (CHW) | 0.025″ |
| Cutting Edge Material | Carbide | Flute Type | Fine |
| Coating | AlTiN | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.025″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.441
