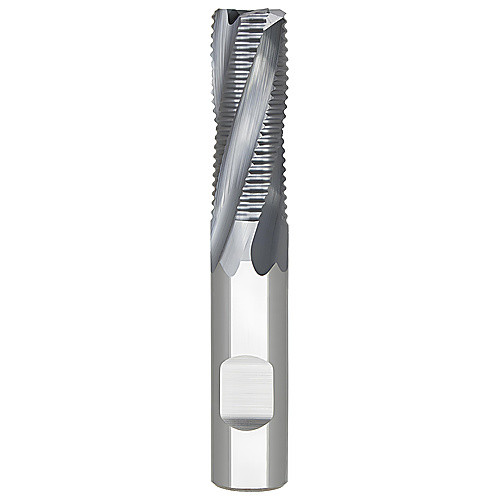

SR420M-160-D2-C100.0-Z4 ALTIN
SQ End Mill; 16 mm Dia. × 36 mm LOC × 16 mm Shank Dia. × 93 mm OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 16 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 16 mm | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 36 mm | Applicable Material | | Stainless Steel | |
| Overall Length (OAL) | 93 mm | Corner Chamfer Width (CHW) | 1 mm |
| Cutting Edge Material | Carbide | Flute Type | Fine |
| Coating | AlTiN | Decimal Equivalent | 0.6299″ |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 1 mm |
| Flute Helix Angle (FHA) | 20 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.551
