REC700-0.625-D3-C030.3-Z4

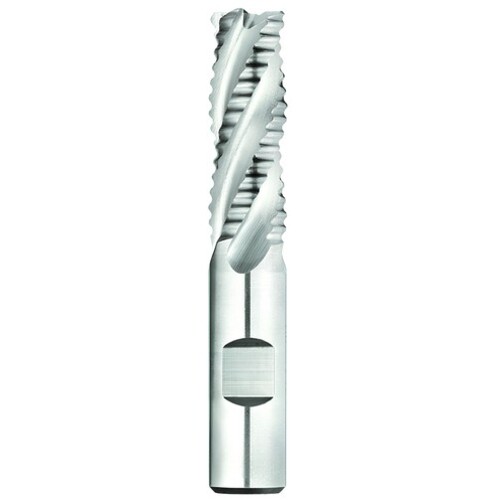

SQ End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-3/8″ OAL ; 4 FL ; HSSCo
| Cutting Diameter (DC) | 5/8″ | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 1-1/4″ | End Shape | Chamfer |
| Overall Length (OAL) | 3-3/8″ | Corner Chamfer Width (CHW) | 0.03″ |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.625″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.249
