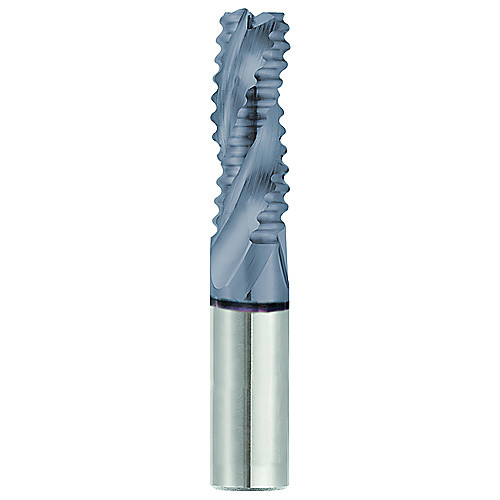

AR330-0.375-D3-C020.0-Z3
SQ End Mill; 3/8″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 3/8″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 1″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 2-1/2″ | Corner Chamfer Width (CHW) | 0.02″ |
| Cutting Edge Material | Carbide | Flute Type | Coarse |
| Coating | TiCN | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.119
