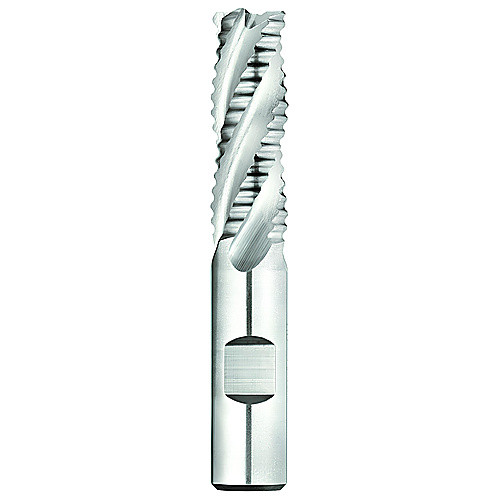

REC700-0.188-F3-C020.3-Z4 TICN
SQ End Mill; 3/16″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 2-3/8″ OAL ; 4 FL ; HSSCo ; TiCN
| Cutting Diameter (DC) | 3/16″ | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 1/2″ | End Shape | Chamfer |
| Overall Length (OAL) | 2-3/8″ | Corner Chamfer Width (CHW) | 0.02″ |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | TiCN | Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.071
