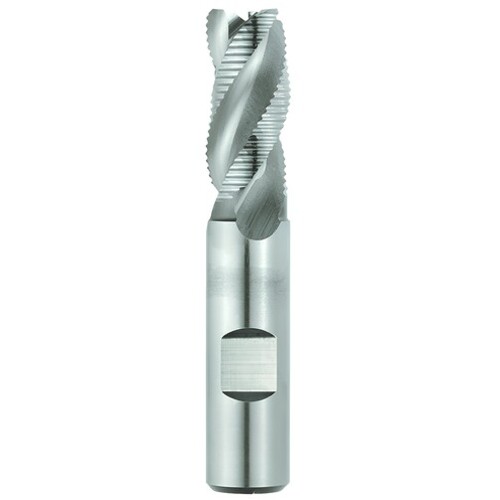

RTM713-1.000-D2-C030.3-Z3 TICN
SQ End Mill; 1″ Dia. × 1-3/4″ LOC × 1″ Shank Dia. × 4-5/8″ OAL ; 3 FL ; HSSCo ; TiCN
| Cutting Diameter (DC) | 1″ | Flute Helix Angle (FHA) | 36 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 1-3/4″ | End Shape | Chamfer |
| Overall Length (OAL) | 4-5/8″ | Corner Chamfer Width (CHW) | 0.03″ |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | TiCN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.860
