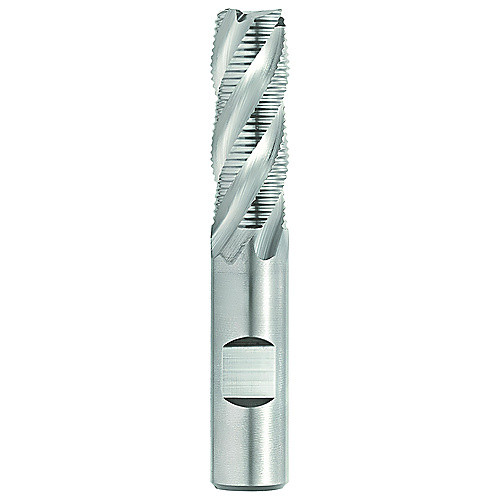

EXR350-0.750-D4-C030.3-Z4 TIALN
SQ End Mill; 3/4″ Dia. × 3″ LOC × 3/4″ Shank Dia. × 5-1/4″ OAL ; 4 FL ; HSSCo ; AlTiN
| Cutting Diameter (DC) | 3/4″ | Flute Helix Angle (FHA) | 35 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 3″ | End Shape | Chamfer |
| Overall Length (OAL) | 5-1/4″ | Corner Chamfer Width (CHW) | 0.03″ |
| Cutting Edge Material | HSSCo | Flute Type | Fine |
| Coating | AlTiN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.52
