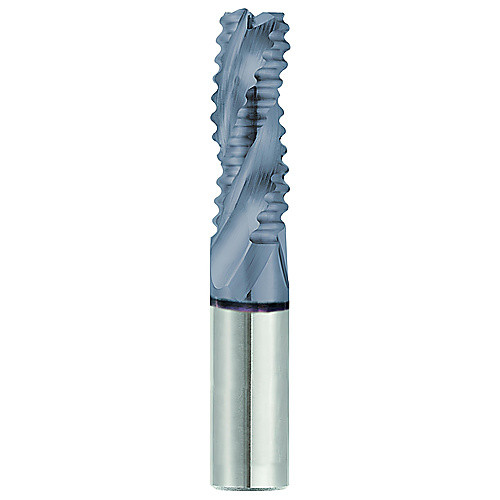

AR330-1.000-D2-C025.0-Z3 TICN
SQ End Mill; 1″ Dia. × 2″ LOC × 1″ Shank Dia. × 5″ OAL ; 3 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 1″ | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 2″ | End Shape | Chamfer |
| Overall Length (OAL) | 5″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.025″ |
| Coating | TiCN | Flute Type | Coarse |
| Flute Count (NOF) | 3 | Decimal Equivalent | 1″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.25
