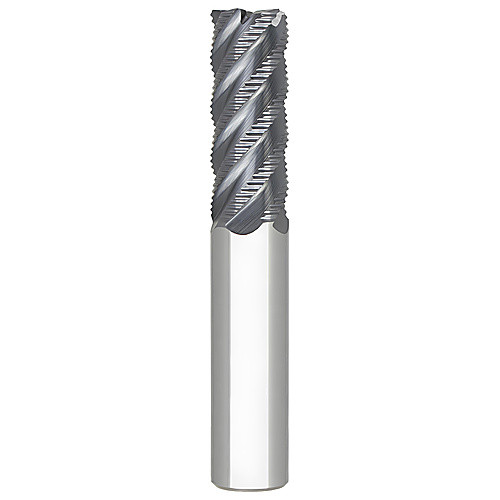

SR545-0.375-D1-C020.0-Z5
SQ End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 2″ OAL ; 5 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/8″ | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 1/2″ | End Shape | Chamfer |
| Overall Length (OAL) | 2″ | Corner Chamfer Width (CHW) | 0.02″ |
| Cutting Edge Material | Carbide | Flute Type | Fine |
| Coating | AlTiN | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.119
