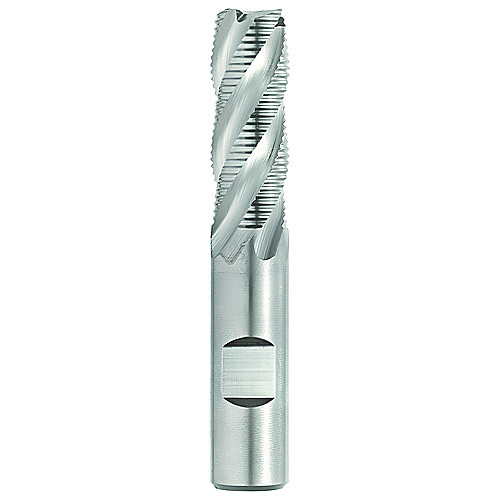

EXR350-0.500-D3-C025.3-Z4 TIALN
SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3-1/4″ OAL ; 4 FL ; HSSCo ; AlTiN
| Cutting Diameter (DC) | 1/2″ | Flute Helix Angle (FHA) | 35 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 1-1/4″ | End Shape | Chamfer |
| Overall Length (OAL) | 3-1/4″ | Corner Chamfer Width (CHW) | 0.025″ |
| Cutting Edge Material | HSSCo | Flute Type | Fine |
| Coating | AlTiN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.161
