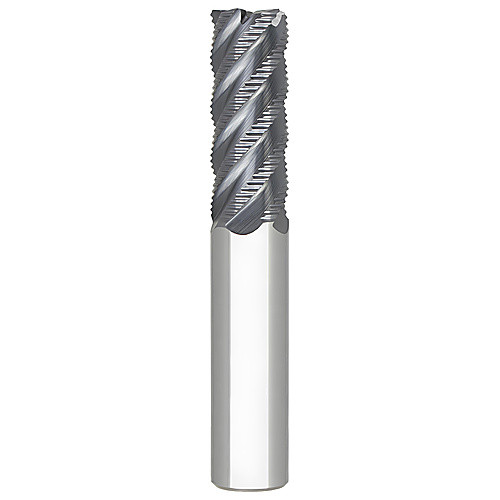

SR545-0.500-D1-C025.0-Z5 ALTIN
SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 2-1/2″ OAL ; 0.025″ RE ; 5 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/2″ | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 5/8″ | End Shape | Chamfer |
| Overall Length (OAL) | 2-1/2″ | Corner Chamfer Width (CHW) | 0.025″ |
| Cutting Edge Material | Carbide | Flute Type | Fine |
| Coating | AlTiN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | 0.025″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.24
