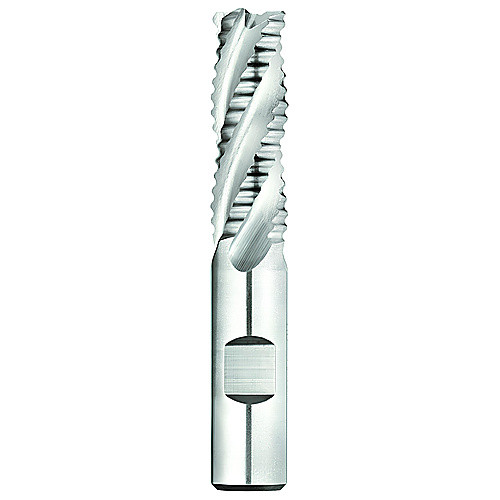

17016583 REC700-0.438-P2-
SQ End Mill; 7/16″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 2-11/16″ OAL ; 4 FL ; HSSCo ; TiCN
| Cutting Diameter (DC) | 7/16″ | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 1″ | End Shape | Chamfer |
| Overall Length (OAL) | 2-11/16″ | Corner Chamfer Width (CHW) | 0.025″ |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | TiCN | Decimal Equivalent | 0.4375″ |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.09
