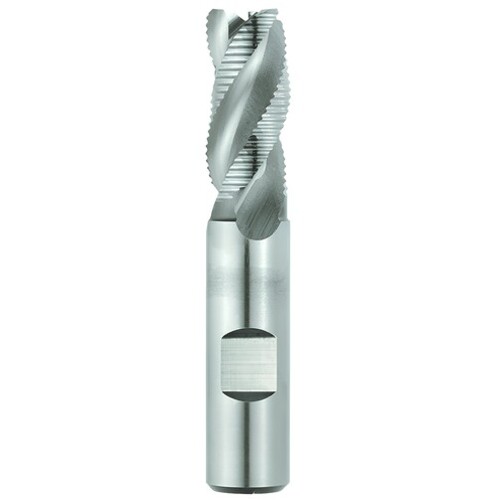

RTM713-0.375-D2-C020.3-Z3 TICN
SQ End Mill; 3/8″ Dia. × 7/8″ LOC × 3/8″ Shank Dia. × 2-3/4″ OAL ; 3 FL ; HSSCo ; TiCN
| Cutting Diameter (DC) | 3/8″ | Flute Helix Angle (FHA) | 36 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 7/8″ | End Shape | Chamfer |
| Overall Length (OAL) | 2-3/4″ | Corner Chamfer Width (CHW) | 0.02″ |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | TiCN | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.079
