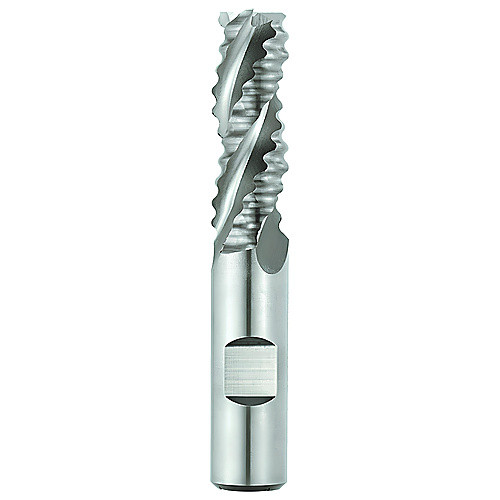

RHC752-0.250-F3-C020.3-Z3
SQ End Mill; 1/4″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2-7/16″ OAL ; 3 FL ; HSSCo
| Cutting Diameter (DC) | 1/4″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 5/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 2-7/16″ | Corner Chamfer Width (CHW) | 0.02″ |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | Uncoated | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 3 | Series/List # | RHC752 |
| Flute Helix Angle (FHA) | 36 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.071
