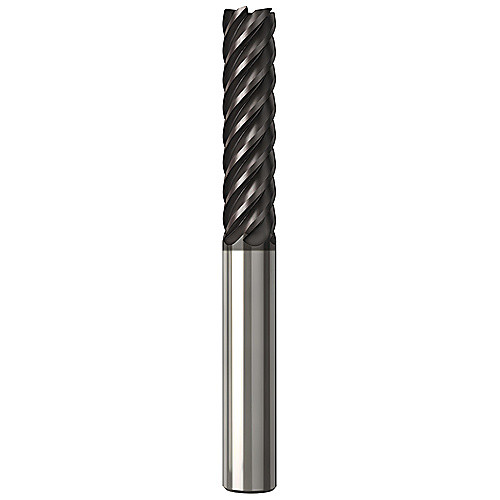

JS520160D3C.3Z6-NXT JABRO ENDMILL
SQ End Mill; 16 mm Dia. × 65 mm LOC × 16 mm Shank Dia. × 125 mm OAL ; 6 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16 mm | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 65 mm | End Shape | Chamfer |
| Overall Length (OAL) | 125 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.16 mm |
| Coating | NXT | Decimal Equivalent | 0.6299″ |
| Flute Count (NOF) | 6 | Series/List # | JS520 |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.728
