3/64-3FL-DE-STUB

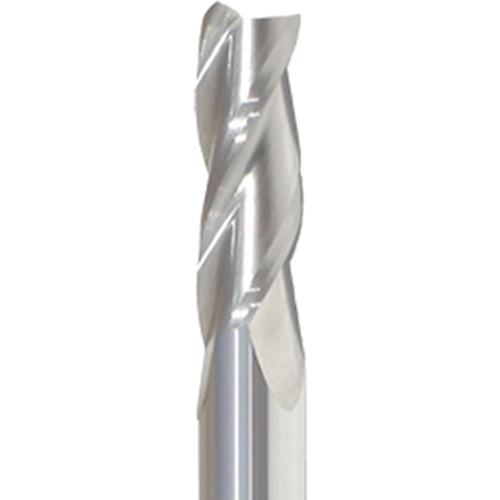

SQ End Mill; 3/64″ Dia. × 3/32″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 3 FL ; Carbide ; Series 235
| Cutting Diameter (DC) | 3/64″ | Application | Slotting | Profiling | Plunging |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Grade | C-2 Sub-Micron |
| Depth of Cut Maximum (APMX) | 3/32″ | Decimal Equivalent | 0.0469″ |
| Overall Length (OAL) | 1-1/2″ | Series/List # | 235 |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Single / Double End | Double End |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.01
